Product Details:
Payment & Shipping Terms:
|
| Product Name: | Animal Feed Pellet Making Machine | Raw Material: | Carbon Steel |
|---|---|---|---|
| Dimension: | 3260*1100*2200mm | Voltage: | 380V, 50hz, 3 Phase |
| Screw Diameter: | 155mm | Application: | Animal Feed Pellet Machine |
| High Light: | 3 phase Livestock Feed Pellet Line,10mm Animal Feed Pellet Line,Livestock Cattle Cow Feed Pellet Line |
||
1ton/H 2ton/H Animal Feed Pellet Machine Production Line For Sale
Product description

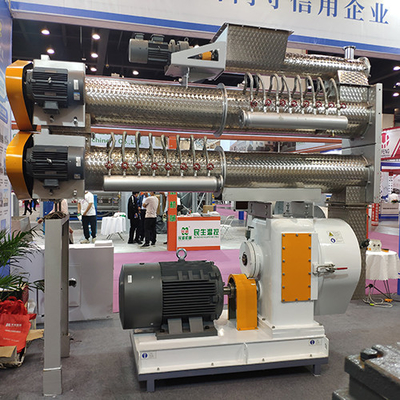

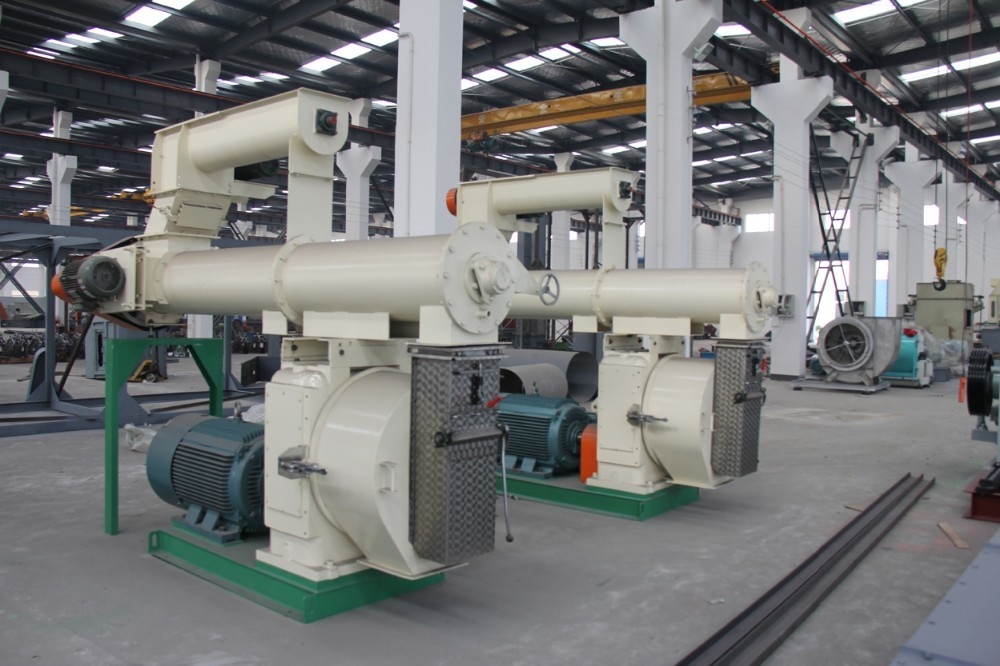

Chicken feed pellet machine is the main equipment of feed pellet line. It mainly makes the crushed powder into the pellets. Ring die is granulation is part of the feed pellet machine, when the feed ingredients into the ring die abrasive, by squeezing out feed particles . Feed pellet machine configuration, self-protection system in unstable voltage and overload operation, can effectively protect the feed pellet machine, balance weight noise reduction technology also greatly reduces the feed pellet machine work occurs when sound, greatly improving the acceptance rate of the feed processing plant. Feed pellet machine using modulator will feed ingredients to fully cure, played the feed ingredients of sterilization, the role of starch aging, improve the feed rate of pellet formation, and reduce the feed pellet machine, abrasive wear, extend the life of the road of the feed pellet machine.
| Raw materials | corn,wheat bran,fish meal,bone powder,meat,alfafa,grassetc. |
| Diameter of feed pellet | 2/2.5/3/3.5/4/6/8/10mm |
| Application | feed pellet machine/plant widely be used for home,poultry and livestock farm. |
| Capacity | 1-3T/H,also can customized according to your demand |
| Process Step | crushing-mixing-pelletizing--cooler&screener--packing |
| Warranty | 1Year(except spare parts) |
| Certication | CE |
| Motor | Siemens Brand Motor |
| Bearing | Brand |
| Service after sales | Engineer can provide technical support |
| Model | Main power(kw) | Out-put(t/h) | Power of Conditioner(kw) | Power of screw feeder(kw) | In-side of rind die(mm) |
| SZLH250 | 22 | 0.5-1.5 | 2.2 | 0.55 | 250 |
| SZLH320 | 37 | 2-3 | 2.2 | 0.75 | 320 |
| SZLH350 | 55 | 3-5 | 3 | 0.75 | 350 |
| SZLH400 | 75/90 | 3-10 | 5.5 | 1.5 | 400 |
| SZLH420 | 90/110 | 3-14 | 5.5 | 1.5 | 420 |
| SZLH508 | 110/132/160 | 6-15 | 7.5 | 2.2 | 508 |
| SZLH558 | 180/200 | 10-20 | 11 | 2.2 | 558 |
| SZLH678 | 220/250 | 25-30 | 18.5 | 3 | 678 |
