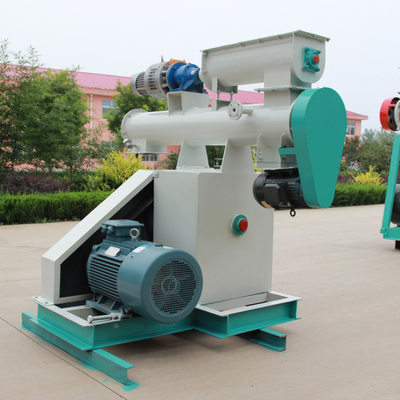

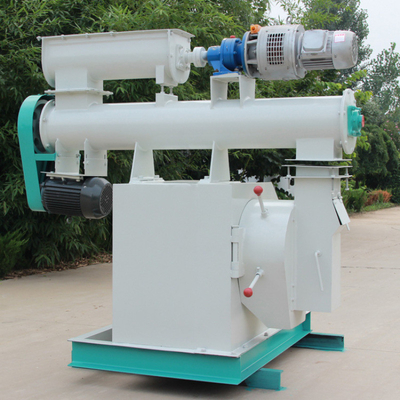

Chicken Poultry Feed Pellet Mill Machine 415V Cattle Animal Feed Pellet

Chicken Poultry Feed Pellet Mill Machine 415V Cattle Animal Feed Pellet
Chicken Poultry Feed Pellet Mill Machine 415V Cattle Animal Feed Pellet Chicken Poultry Feed Pellet Mill Machine 415V Cattle Animal Feed Pellet

Large Image :  Chicken Poultry Feed Pellet Mill Machine 415V Cattle Animal Feed Pellet

Product Details:
Place of Origin: Henan, China
Brand Name: Shenghong
Certification: BV, SGS, ISO9001
Model Number: SZLH320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD 3999-6999
Packaging Details: Plywood packing, 20GP, 40GP, 40HQ
Delivery Time: within 15 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
Product Name: Feed Pellet Mill Machine Capacity: 1-3 Tons Per Hour
Raw Material: Animal Feed Powder Material: Stainless Steel Or Carbon Steel
Voltage: 380V/415V Warranty: 12 Month
High Light:

Poultry Feed Pellet Mill Machine Chicken

,

415V Animal Pellet Mill Machine

,

Cattle Animal Feed Pellet Processing Machine

Poultry Feed Pellet Machine Chicken Cattle Animal Feed Pellet Processing Machine



Product description of feed pellet mill machine

1. This type of Feed Pellet Production Line is the main machine for making the various roughage and refined feed pellets for various animals(such as, the pets, the livestock ,dogs, fish, cattle, chicken, duck etc.
2. The Feed Pellet Production Line is widely used for the livestock farm, feed mill, chemical industry, fertilizer industry and sugar industry.
3. Raw material for making feed pellet: corn, soybeans, fish meal, oil cake, wheat bran, grass, alfalfa, straw etc.moisture content of material: less than 20%;size of raw material: powder shape.
4. Pellet diameter: 2/2.5/3/4/6/8/10mm



Parameter of feed pellet mill machine



Model No. Main motor power Capacity (t/h) Ring die inner diameter (mm) Feeder power (kw) Conditioner motor power (kw) Size (mm) Weight (kg)
SZLH250 22kw 0.6-1 250 0.75 1.1 1750×650×1750 800
SZLH320 37kw 1-3 320 0.75 2.2 1900×1800×1650 2000
SZLH350 55kw 3-5 350 0.75 2.2 2100×2000×1850 2400
SZLH420 110kw 8-10 400 1.5 4 2200×2000×2150 2900
SZLH508 132/160kw 10-18 450 1.5 4 2300×2350×2150 3500

Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC



Feature:

Feeder and conditioning device of the Animal Feed Mill Plant and the feeding chute of the livestock feed pelletizing machine adopt stainless steel material, durable use;
Feeding system of the Small Animal Feed Mill Plant adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements;
Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient;
Security, has a strong magnetic magnet and overload protection device such as a safe and reliable;
Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.

Application:
Feed pellet making machine is a key equipment for producing pellet feed. It is characterized by high output,good performance,low energy consumption,low noise and fine appearance.It is an ideal equipment for producing various pellet feed for poultry,animal fish and shrimp.
1. Animal feed pellet making machine is mainly used for making pellets for poultry and animal feed.
2. Main raw materials are corn, bean, wheat ,rice husk, etc.
3. Diameters of the die ring can be 2-10mm, length can be 5-20mm.


Chicken Poultry Feed Pellet Mill Machine 415V Cattle Animal Feed Pellet 0



Tag:

110kw chicken feed pellet machine,

400mm chicken feed pellet machine,

feed pellet making machine 10TPH
