| Fit For: | Chicken, Pig, Duck Etc Animals | Power: | 110kw |
|---|---|---|---|
| Voltage: | 380V/415V/600V | Production Capacity: | 8-10T |
| Pellet Size:: | 2-14mm | Condition: | New |
| High Light: | 415V 600V Animal Feed Pellet Extruder,415V 600V Feed Pellet Extruder Machine,380V 415V 600V Feed Pellet Extruder |
||

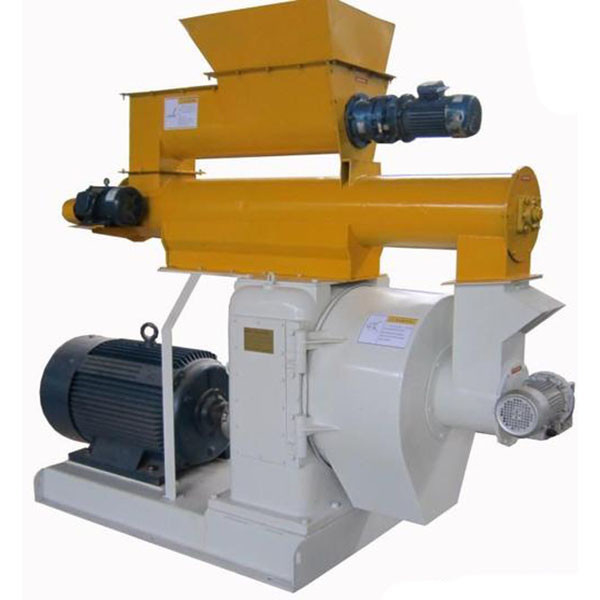

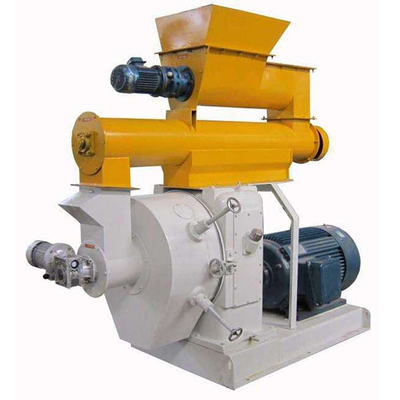

China producer animal feed pellet extruder machine
Introduce:
Animal Feed Extruder Machine can produce dry pet food and floating fish feed for dogs, cats, fish, birds, horses, etc. Before pressing the granules, the raw material should be a powder with a moisture content of 15%-20%. According to your different kinds of animals, the final pellets can be 2-14mm in diameter. If you need a different particle diameter, just change a different flat die or ring die. Animal Feed Extruder Machine power supply is usually 380v, 50hz, 3-phase, but if you have a different power supply, please contact us before quotation.
Parameter of animal feed extruder
|
Model |
SZLH250 |
SZLH320 |
SZLH350 |
SZLH420 |
SZLH508 |
|
Power(KW) |
22 |
37 |
55 |
110 |
160 |
|
Capacity(T/H) |
1 |
2-4 |
5-7 |
8-10 |
15-20 |
|
Inner dia(mm) |
250 |
320 |
350 |
420 |
508 |
|
Pellet size(mm) |
2-8 |
2-8 |
2-18 |
2-18 |
2-18 |
Structural features:
1:Feeder and conditioning device of the Animal Feed Mill Plant and the feeding chute of the livestock feed pelletizing machine adopt stainless steel material, durable use;
2:Feeding system of the Small Animal Feed Mill Plant adopts electromagnetic speed regulating control, speed control, convenient and full capacity to adapt to the different material requirements;
3:Host drive with high precision gear drive, ring die adopt anchorear type and disassembly is convenient;
4:Security, has a strong magnetic magnet and overload protection device such as a safe and reliable;
5:Compact structure, beautiful appearance, high yield, less consumption, easy to use, maintenance and quick.
Product Feature:
1. Double motor drive system with the ideal transmission ratio, large driving torque, smooth transmission.
2. The VVVF (electromagnetic speed) feeding, is equipped with overload protection device, a magnetic plate iron removing device.
3. The high yield, low noise, convenient operation and maintenance.
4. The main parts of the bearings and the standard parts are imported.
5. With 2-14mm, a variety of ring die size and thickness, the user can choose according to different needs.
Advantages of Animal Feed Extruder Machine for Livestock Farm:
The biggest advantage of Animal Feed Extruder Machine for Livestock Farm is to save materials. Many friends who are engaged in breeding know this. If you want to process feed yourself, the feed pellet machine is indispensable. It can not only save a lot of costs, but also more importantly. It is more reliable and reliable to process by yourself.
